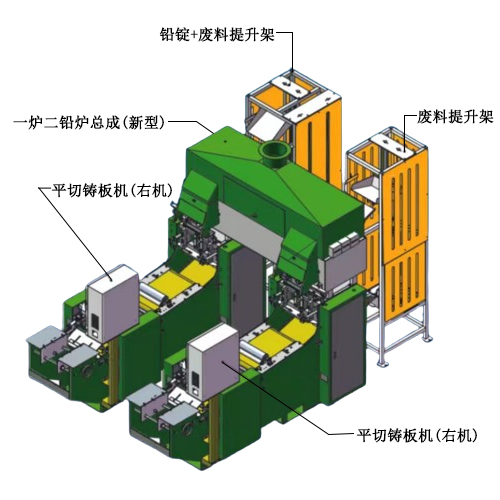

ds-347-12 One furnace two casting machine

部 件 名 称

型 号 （ 规 格 ）

1

Max. range of casting. including lugs (L"w）

385*180（mm）

2

Castingthickness

1.0-4.0（mm）

3

Casting speed

8-16片pcs/min主要看技术人员操作

4

Capacity of lead furnace

1.8T

5

Gross power

50.3kw

6

Electric heating pipe of lead fumace

3 ф380V1415V 36kw(1 ф 220V1240V X2kw/支pc x3支pcs/组group x6组group

7

Ladle heating pipe

2ф380V/415V 4.0kw/支pc/台set

8

Electric heating block of mould

2.4kw/台set(2 中 380V/415V1.2kw/支pcX2支pcs)

9

Main motor

3ф 380V 0.75kw/台set

10

Speed reducer of main unit

WPDS70# 1/30

11

Frequency converter of Main motor

VFD-M 1.5KW/台set

12

Adjustable cutting area (W)

105-175mm

13

Adjustable cutting area(L)

400mm

14

Airflow

≥196L/min

15

Air Input

≥0.5MPa
